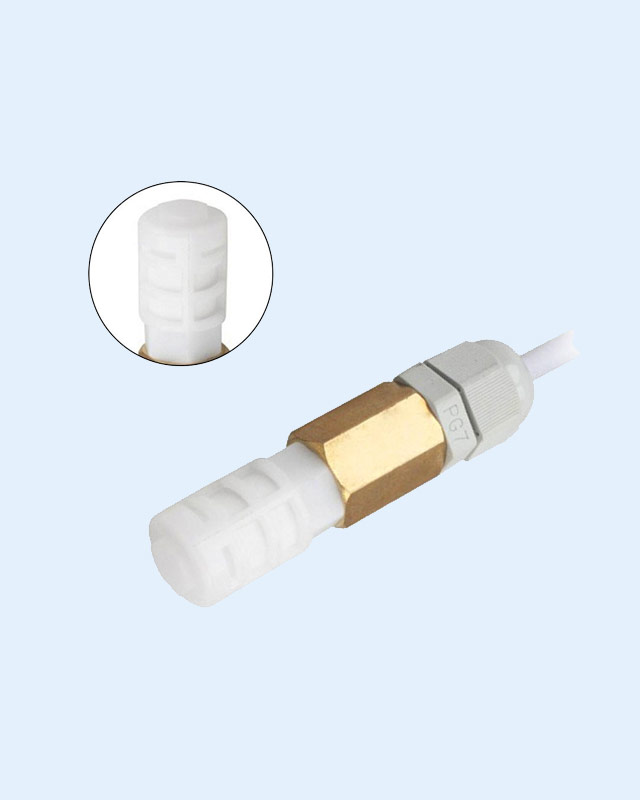

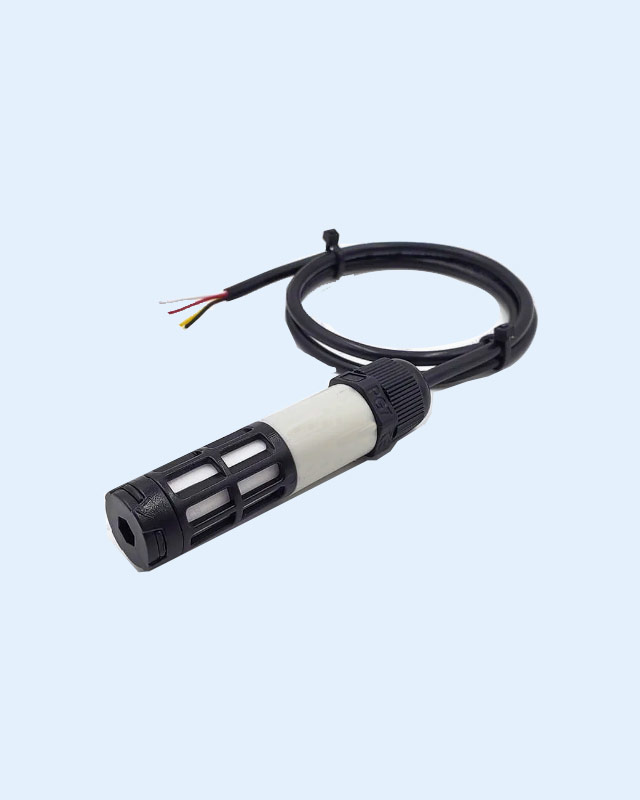

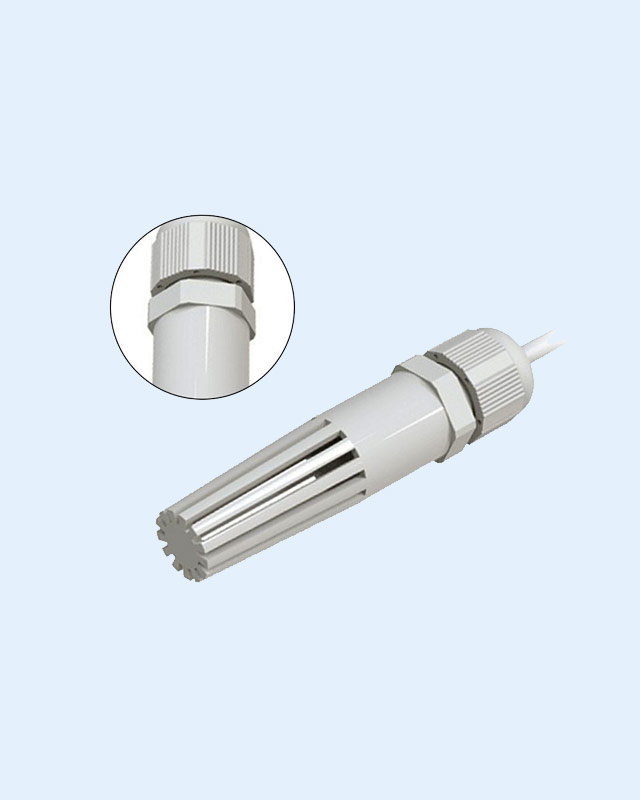

Modbus RTU IP67 Waterproof PE PVC Metal Probe High-Precision Temperature and Humidity Sensor Cable
This sensor uses an integrated temperature and humidity probe as its core measuring component. It collects both temperature and humidity signals and, after circuit processing, outputs them directly through the main control chip interface.
The probe-type temperature and humidity sensor incorporates an imported digital temperature and humidity data acquisition unit, meticulously calibrated during manufacturing. This relative humidity and temperature sensor boasts digital output and full interchangeability. It excels in measurement accuracy, linearity, repeatability, interchangeability, and consistency, making it ideal for environmental equipment, instrument integration, and general environmental testing applications.
Wide Voltage Design: Cost-effective with a broad voltage range.
Digital Linear Correction: Ensures high accuracy and exceptional stability.
Full-Range Temperature and Humidity Compensation: Offers a wide measurement range for both temperature and humidity, with optional measurement ranges available.
Flexible Installation & Convenient Use: Easy to install and highly user-friendly.
Compact Size, Lightweight & Anti-Vibration: Designed for portability and durability.
Customizable Shapes: Can be manufactured in various forms to meet diverse customer needs.
Widely used in building automation, communication rooms, paper printing, warehousing logistics, shopping malls, hotels, agricultural greenhouses, cinemas, railway stations, museums, theaters, clean workshops, and other areas requiring temperature and humidity measurement.
Property | Value |
---|---|
Temperature Range | Standard: -40 to 85°C (other temperature ranges can be customized) |
Humidity Range | 0-100% RH (non-condensing state) |
Accuracy | ±0.4∘C (0-42$^\circ\text{C}$), ±3% RH |
Repeatability | ±0.1∘C, ±0.1% RH |
Long-Term Stability | > 0.1∘C/year, > 1% RH/year |
Supply Voltage | 10-30V DC |
Output Signal | RS485 (Standard Modbus-RTU protocol, default address: 01) |
Response Time | Less than 1 second |
Working Environment | Temperature: -40$^\circ\text{C}$ to 60$^\circ\text{C}$; Humidity: ≤95% RH |
Manufacturer | China |
---|---|
Dimensions | .. × .. cm |
Weight | 00gm |
