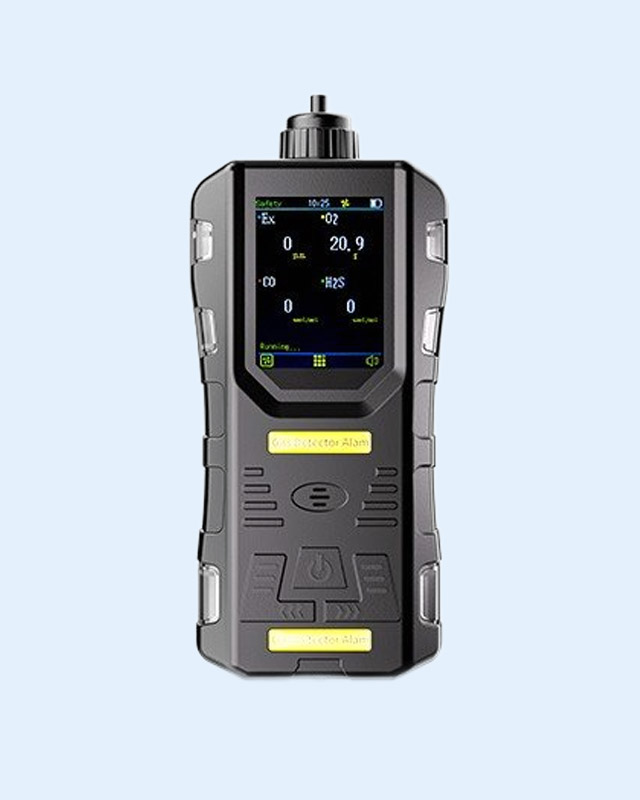

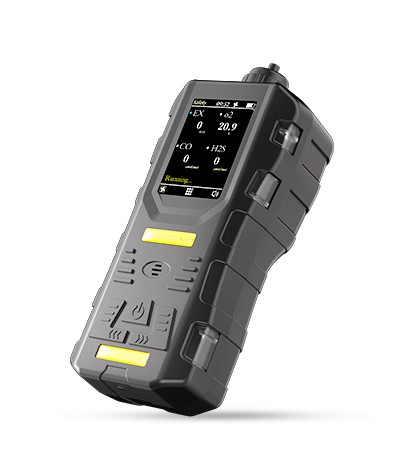

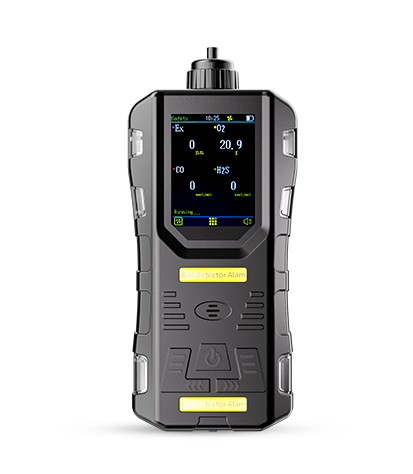

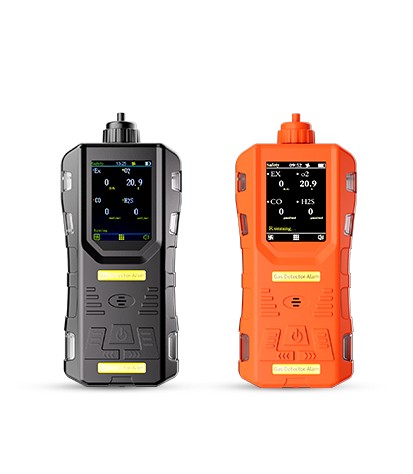

S316 Pump suction type gas detection alarm Portable type pump suction multi gas detector

Brand: Generic

Out of Stock

S316 pump suction gas detector is a multi-in-one gas detector. It can continuously detect combustible, oxygen, carbon monoxide, hydrogen sulfide and other toxic gases in ambient air, and detect up to 5 gases at the same time. This instrument is waterproof design and combine with rubber shell

Notify Me When Available

Country: China
SKU: 000
Tags:
- S316 pump suction gas detector ,Gases ,Gas , Multi Gas ,
Share:

S316 Pump suction type gas detection alarm

ZhongAn S316 pump suction gas detector is a multi-in-one gas detector. It can continuously detect combustible, oxygen, carbon monoxide, hydrogen sulfide and other toxic gases in ambient air, and detect up to 5 gases at the same time. This instrument is waterproof design and combine with rubber shell, to meet the harsh requirements of harsh environment.

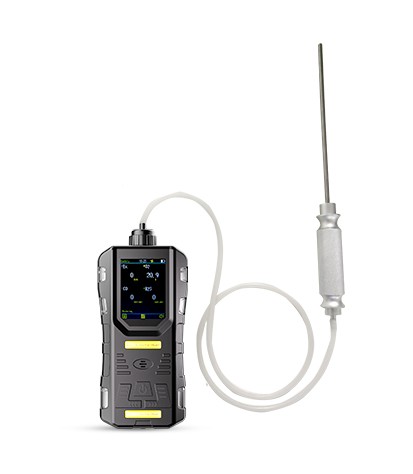

ZhongAn S316 gas detector uses pump-suction mode for detecting, and high quality gas sensors are used for sensitive components, which has excellent sensitivity and repeatability. The instrument is controlled by embedded micro-computer. It has simple operation, complete functions, high reliability, multiple adaptive abilities, and is intuitive and clear with graphic and text liquid crystal display.

Technical Parameters

Detection mode	Pump-suction type
Sensor types	catalysis, electrochemistry, PID, infrared
Display error	±3%FS
Indicating mode	LCD display real-time data and system status, light-emitting diode, sound and vibration indication alarm, fault and undervoltage
Working environment	temperature: - 20 ~55 ℃; humidity: < 93% RH without condensation
Working voltage	DC3.7V ; 3500mAh
Charging time:	<6h
Working hours	> 8 hours continuous (non-alarm standby state)
Sensor life	2 years (electrochemistry)
Explosion-proof mark	Ex ia IIC T4 Ga
Explosion-proof certificate number	CLEx24.1020
Protection level	IP65
Shape size:	179mm * 79 mm * 48 mm (length * width * height)
Weight	About 400g

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
