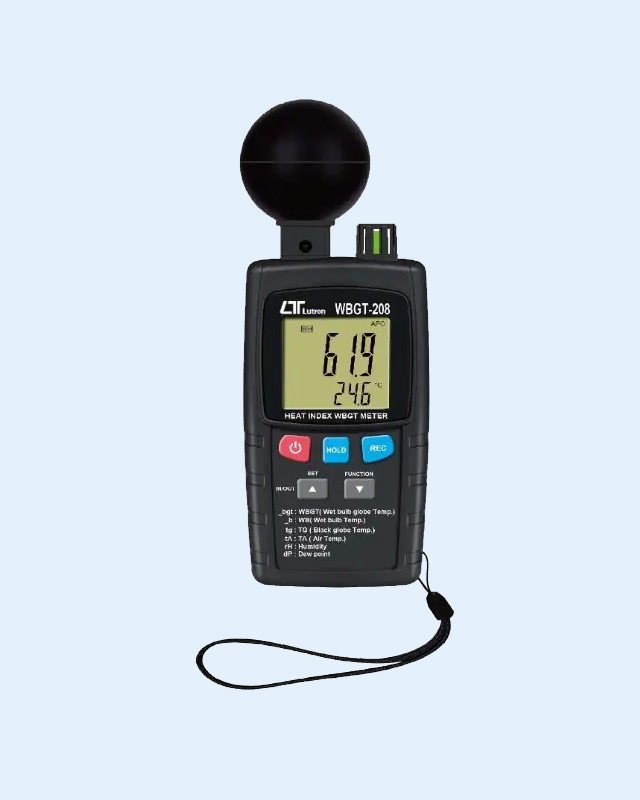

WBGT WBGT-208 Thermal stress measuring device

• Measurement:
  * Wet bulb globe temperature ( WBGT ) @ Indoor/Outdoor
  * Black globe temperature ( TG )
  * Air temperature ( TA )
  * Wet bulb temperature ( WB )
  * Humidity
  * Dew point temperature
• WBGT formula * Wet bulb globe Temp.:
  * Indoor/Outdoor and no sun : WBGT = ( 0.7 x WB ) + ( 0.3 x TG )
  * Outdoor and full sun : WBGT = ( 0.7 x WB ) + ( 0.2 x TG ) + ( 0.1 x TA )

Description

Lutron WBGT-208 Heat Index WBGT Meter

Features Lutron WBGT-208 Heat Index WBGT Meter

• WBGT ( wet-bulb globe temperature ) was developed as a monitoring basis at US military training camps and became widespread for the use in workplaces and sports situation It is suggested in the international standard ISO 7243, OSHA ( US Occupation Safety ), Japan Society for Occupational Health and the SMA ( Sports Medicine Australia ) in establishing the permissible heat exposure limits in health , sports or other physical activities.
• Measurement : WBGT value ( Indoor/Outdoor Wet bulb globe temperature ), Black globe temperature,
• Humidity Air temperature, Wet bulb temperature, Dew point Temp..
• Adjustable WBGT alarm setting, if the WBGT value over the alarm threshold, the buzzer will sound along with the flashing Display.
• Using to control and monitor of physical activity in hot environment to limit the danger of heat related injuries.
• Globe temperature measurement use the Pt sensor,high accuracy.
• Fast humidity measuring response time.
• Direct measurement of the radiation effect with a brass black ball in 40 mm dia.
• Sensor protecting mechanism.
• LCD with green light backlight, easy reading.
• Can default auto power off or manual power off.
• Data hold, record max. and min. reading.
• Microcomputer circuit, high accuracy.
• Power by UM4/AAA ( 1.5 V ) x 3 batteries .
• RS232/USB PC COMPUTER interface.

Specifications Lutron WBGT-208 Heat Index WBGT Meter

General Specifications

• Circuit: Custom one-chip of microprocessor LSI circuit.
• Display:
  * LCD size : 52 mm x 38 mm
  * LCD with green backlight ( ON/OFF ).
• Measurement:
  * Wet bulb globe temperature ( WBGT ) @ Indoor/Outdoor
  * Black globe temperature ( TG )
  * Air temperature ( TA )
  * Wet bulb temperature ( WB )
  * Humidity
  * Dew point temperature
• WBGT formula * Wet bulb globe Temp.:
  * Indoor/Outdoor and no sun : WBGT = ( 0.7 x WB ) + ( 0.3 x TG )
  * Outdoor and full sun : WBGT = ( 0.7 x WB ) + ( 0.2 x TG ) + ( 0.1 x TA )
• WBGT alarm setting: Adjustable WBGT alarm setting, if the WBGT value over the alarm threshold, the buzzer will sound along with the flashing Display.
• Advanced setting:
  * Set WBGT alarm value
  * Auto power OFF management
  * Set beep Sound ON/OFF
  * Select the temperature unit to ℃ or ℉.
• Data Hold: Freeze the display reading.
• Memory Recall: Maximum & Minimum value.
• Sampling Time of Display: Approx. 1 second.
• Data Output: RS 232/USB PC computer interface.
• Operating Temperature: 0 to 50 ℃.
• Operating Humidity: Less than 85% R.H.
• Power Supply: Alkaline or heavy duty DC 1.5 V battery ( UM4/AAA ) x 3 PCs, or equivalent.
• Power Current:
  * If LCD Backlight is off, the power consumption will be approx. 5 mA.
  * If LCD backlight on, the power consumption will be approx. 11 mA.
• Weight: 489 g/1.08 LB.
• Dimension:
  * Meter : 177 x 57 x 24 mm (7.0 x 2.2 x 0.94 inch)
  * Black brass ball : Round, 40 mm dia

Standard Accessories Included:

• Instruction manual………………………… 1 PC
• Black brass ball ( with sensor )……. 1 PC
• Soft carrying case, CA-05B………………. 1 PC

Optional Accessories:

• USB cable, USB-01.
• RS232 cable, UPCB-02
• Data Acquisition software,SW-U801-WIN
• Soft carrying case, CA-52A
