DW-6093 A device for measuring and recording electrical energy 3 vases

Brand: Lutron

Out of Stock

Special device from Easy Test

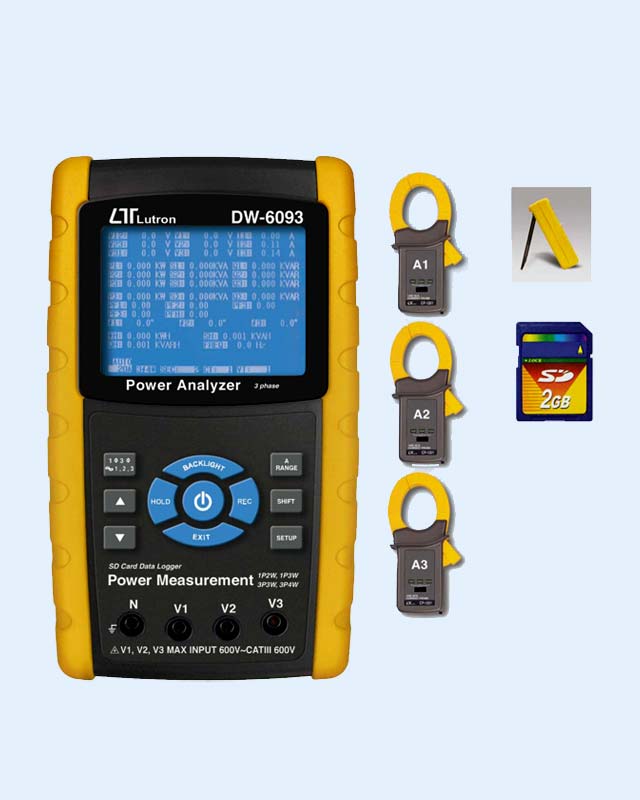

Lutron DW-6093 3-Phase Power Monitoring Datalogger for Load Studies

Three Phase Power Datalogger for Power Monitoring and Load Studies
Configure to any standard power system, single phase two or three wire and three phase delta or wye
Measure AC Voltage up to 600 volts True RMS
Measure AC Current up to 1200 Amps with included clamps (3000 Amps with optional flex probes)
KW, KVA, KVAR, Power Factor, Phase Angle, Frequency, KWH, VAH, VARH
Save data to removable SD memory card in .xls files for easy integratoin with any spreadsheet software
Internal Clock with time/date stamp on all recorded data
Recording rates from every two seconds to every two hours (user programable)
CT and PT scalable
Resettable KWH Consuption Totalizer
2 GB memory card included

Weight	12.000000
Product Includes	power datalogger, four voltage leads, four alligator clips, three 1200 amp current clamps, ac power adapter, 2G sd memory card, carrying bag and instruction manual
Specifications	AC Voltage Input (True rms): 20 to 600V ±(0.5%rdg+0.5v) AC Current Input: 0 to 1200A ±(0.5%rdg) Clamp Opening: 1.8" inside diameter
size	9.25 x 4.5 x 2.1"
Power Supply	eight "AA" batteries
Manufacturer	Lutron
MPN	DW-6093
Manufacturer Warranty	1 Year
Mitchell Catalog Number	9PMIT3600, 8PMIT3600, 7P382090, MMJ-MIT3693
