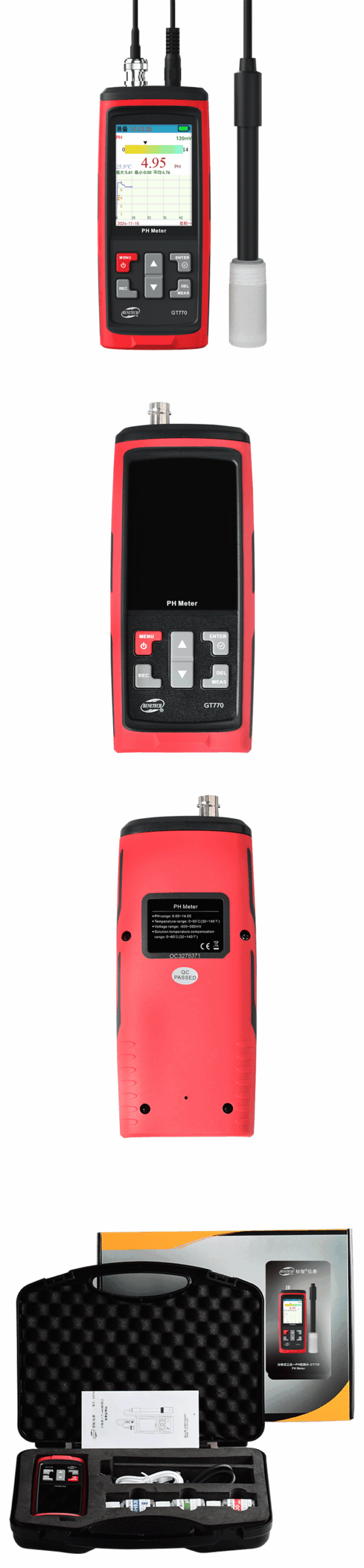

GT770 Portable pH / mV Meter Kit

• IP54 Dust and Water Resistant
• Large backlit graphic colour LCD showing pH/mV and °C
• Ranges:  0.00 ~ 14.00pH and -500 ~ +500mV (electrode dependant)
• Automatic or manual temperature compensation: 0 ~ 60°C
• Reset function (Restore factory default settings and calibration)
• Buffer standards selectable - Europe & USA / NIST / China
• Calibration up to 3 points (default 4.01/7.00/10.01)
• Automatic calibration with auto buffer recognition
• Standard BNC connector (can use with third party electrodes and manual temperature compensation)
• 8MB Data storage memory, approx. 397,000 readings
• USB-C with built-in Lithium rechargeable battery
• Plastic body pH electrode with built-in ATC
• c/w carry case, standard plastic body pH-ATC electrode, mini buffers
• (4,7+10) and USBC cable

Product features:

• Solution pH measurement
• Solution temperature measurement
•  Sensor voltage measurement
•  Solution temperature compensation
•  Automatic/manual data recording, report generation
•  Data storage, viewing, deletion
•  Adjustable sampling time interval
•  Adjustable automatic shutdown time
•  Self-calibration, optional [4.00]-[6.86]-[9.18] or [4.00]-[7.00]-[10.00]
•  Temperature unit selection
•  Restore factory settings
•  Adjustable screen brightness
•  Chinese/English selection
•  Low battery prompt and power prompt
•  USB charging
•  Connect to PC software to transfer data
•  Can generate csv, bmp files compatible with windows system, and can also be used as a small
• capacity storage device (U disk)
  to store other format files
  Product parameters:

pH value measurement range: 0.00~14.00
pH value resolution: 0.01
pHMeasurement error: ±0.05

Temperature measurement range: 0~60℃(32~140℉) Temperature resolution: 0.1℃Temperature measurement error: ±1.0℃

Voltage measurement range : -500~500mV
Voltage resolution: 1mV
Voltage measurement error: ±3%

Solution temperature compensation range: 0~60℃(32~140℉) Working environment: 0~50℃(32~122℉), ≤85%RH Storage space: 8MB (can store
about 397,000 data)Battery: 3.7V 1000mAh lithium battery
Low battery warning: 4 levels of battery indication, automatically shut down when voltage is lower than 3.3V
Charging adapter: 5V/2A
Product size: Host: 160*65.35*35mm
Common abnormal display instructions:

Display [OL.] means the data exceeds the range (overload)
Display [NC.] means the probe is not connected or the signal is disconnected (no connect)
The display [ATC] indicates that the temperature effect on the pH value is compensated (auto temperature compansation). The
acidity and alkalinity of the solution will be affected by temperature changes. If the acidity and alkalinity of the solution to
be tested are not affected by temperature, you can short-press the ENTER key to cancel the ATC compensation.
