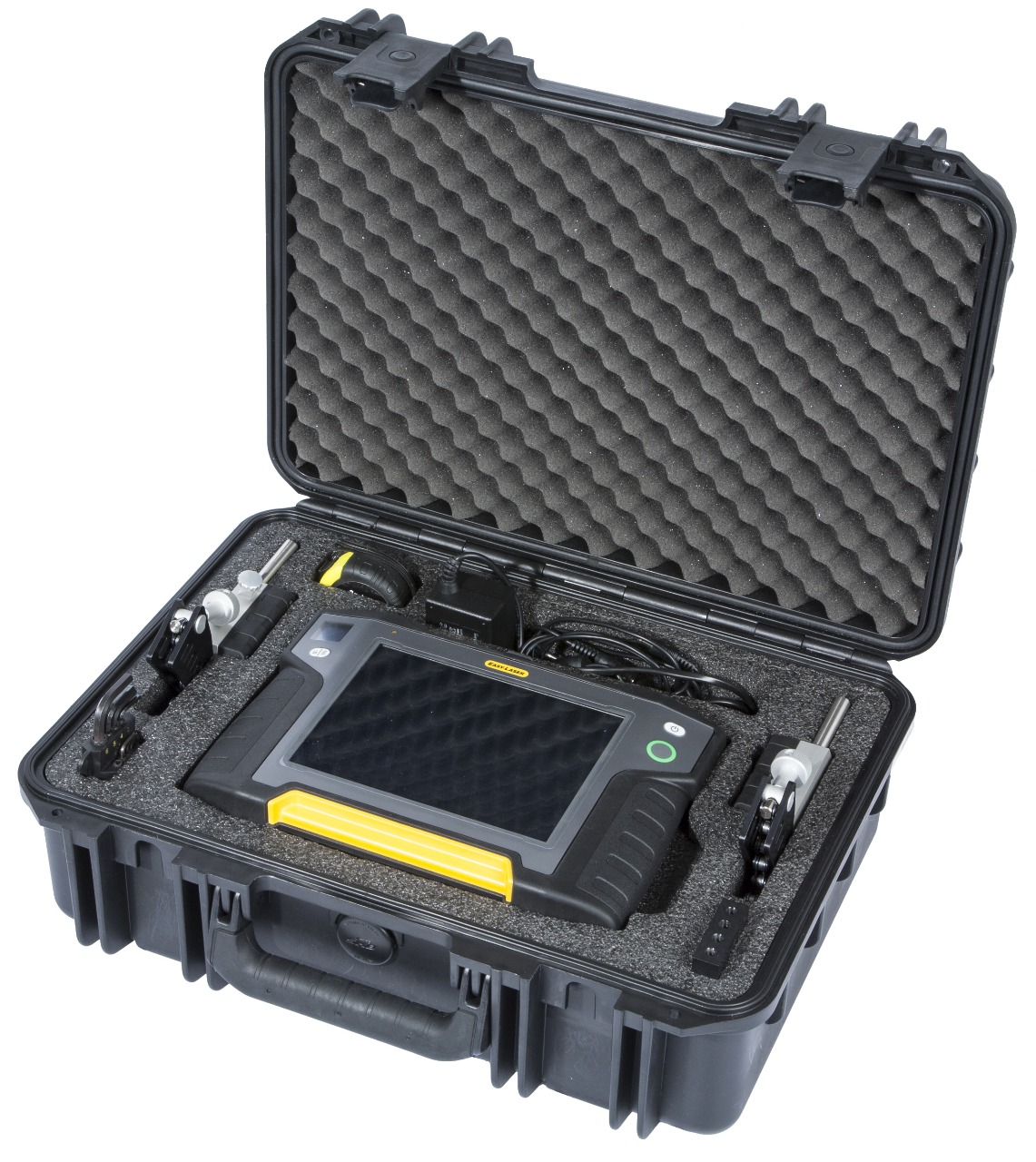

XT440 The perfect tool for basic laser shaft alignment

Function and capabilities

With Easy-Laser XT440 you can perform all necessary steps of shaft alignment on horizontal and vertical/flange-mounted machines, including soft foot check. A detailed alignment report is automatically created after each completed job.

For a list of all measurement programs and functions, please see the Features tab.

Key strengths of XT440

• Line laser technology for ease-of-use.
• User-friendly software that guides users through the alignment process.
• Designed to withstand harsh industrial environments (IP66 and 67).
• Automatic documentation of alignment results.
• Cross-platform compatibility: Works with the industrial-grade Easy-Laser display unit or most iOS/Android devices.

Measuring units XT40-M / XT40-S

The XT40 measuring units have large 30 mm PSD [1.2”], and a state-of-the-art OLED display which shows the angle of the unit, making it easier to position it on the shaft. The line laser technology provides a fast setup and measurement process.

Rigid and rugged

The diagonally positioned fastening screws set the unit in a grid-lock on the rods. Rigid aluminium housing for maximum stability. IP66 and 67, dust- water- and shockproof. Heavy-duty battery for very long operating times. Built-in wireless technology.

Features

• Built-in wireless technology. Integrated rechargeable battery.
• TruePSD technology with unlimited resolution for greatest accuracy.
• Dual laser beams and PSDs.
• Sturdy aluminium body. IP66/67 design.
• OLED display shows the angle of the unit
• 24 hours operating time
